Choosing the Right Pneumatic Tread Pattern for Construction Sites
Construction job sites are unpredictable environments. From rocky foundations and mud pits to paved staging areas and sloped access roads, the terrain changes not just day-to-day — but hour-to-hour. In this chaos, your equipment’s tires are your first point of contact with the ground.
Choosing the right pneumatic tread pattern isn’t a minor decision — it can directly impact traction, wear life, operator safety, and your jobsite’s efficiency. This guide outlines the major tread options available through Sentry Tire, and helps you match each to specific use cases, machinery, and ground conditions.
Tire treads are designed with very specific use cases in mind. Here’s what they influence:
- Traction and stability on uneven or soft ground
- Mud or debris evacuation to prevent slippage
- Wear life based on frequency of turning, stopping, and terrain
- Fuel efficiency due to rolling resistance
- Operator comfort over long or bumpy rides

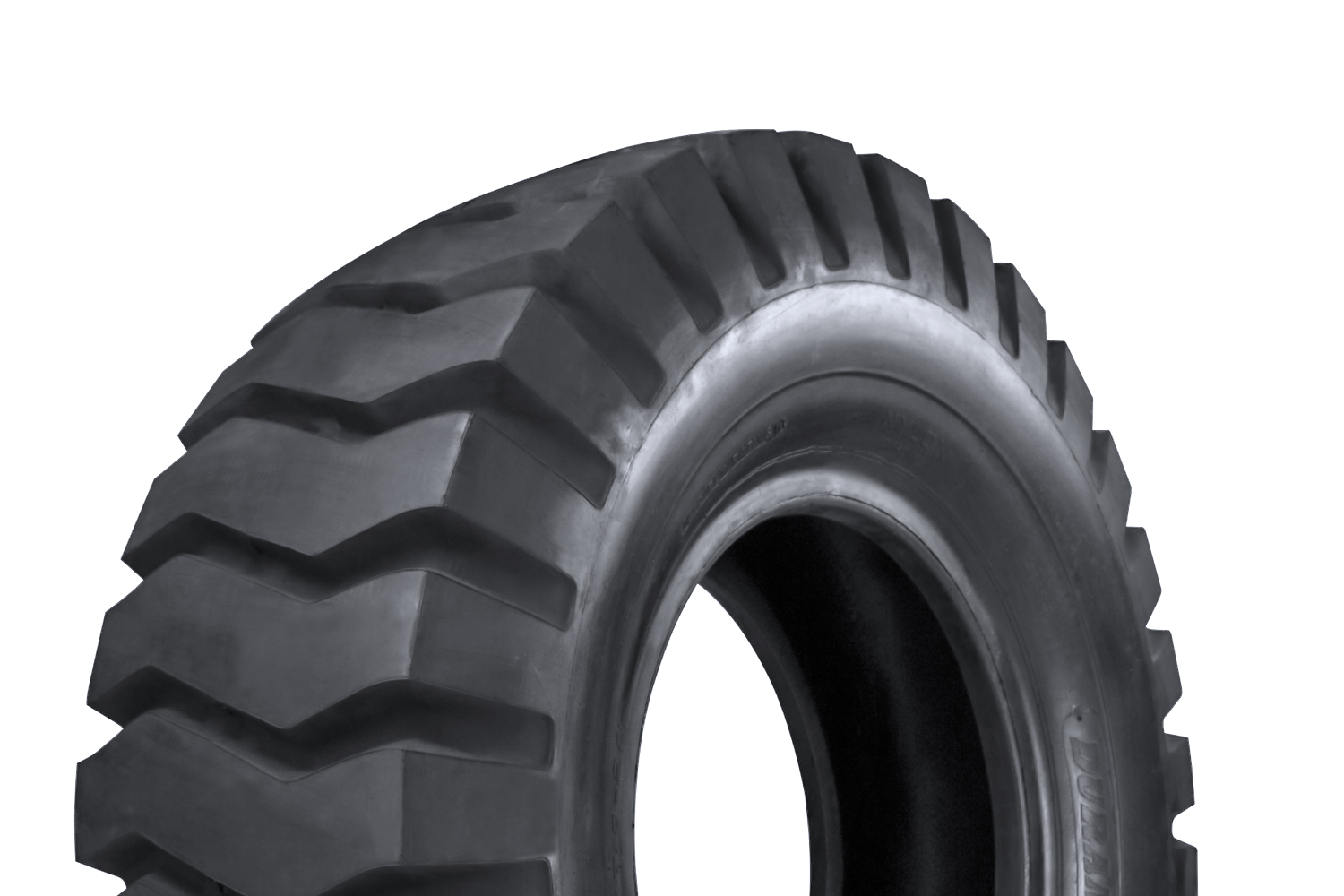

E3 / L3 Pattern – Earthmoving & Loaders
These tires are built with wide lugs and deep voids for loose dirt, soft gravel, and light mud.
- Best for: Dozers, loaders, scrapers
- Ideal surfaces: Loose soil, unpaved construction sites
- Strengths: Good flotation and resistance to clogging

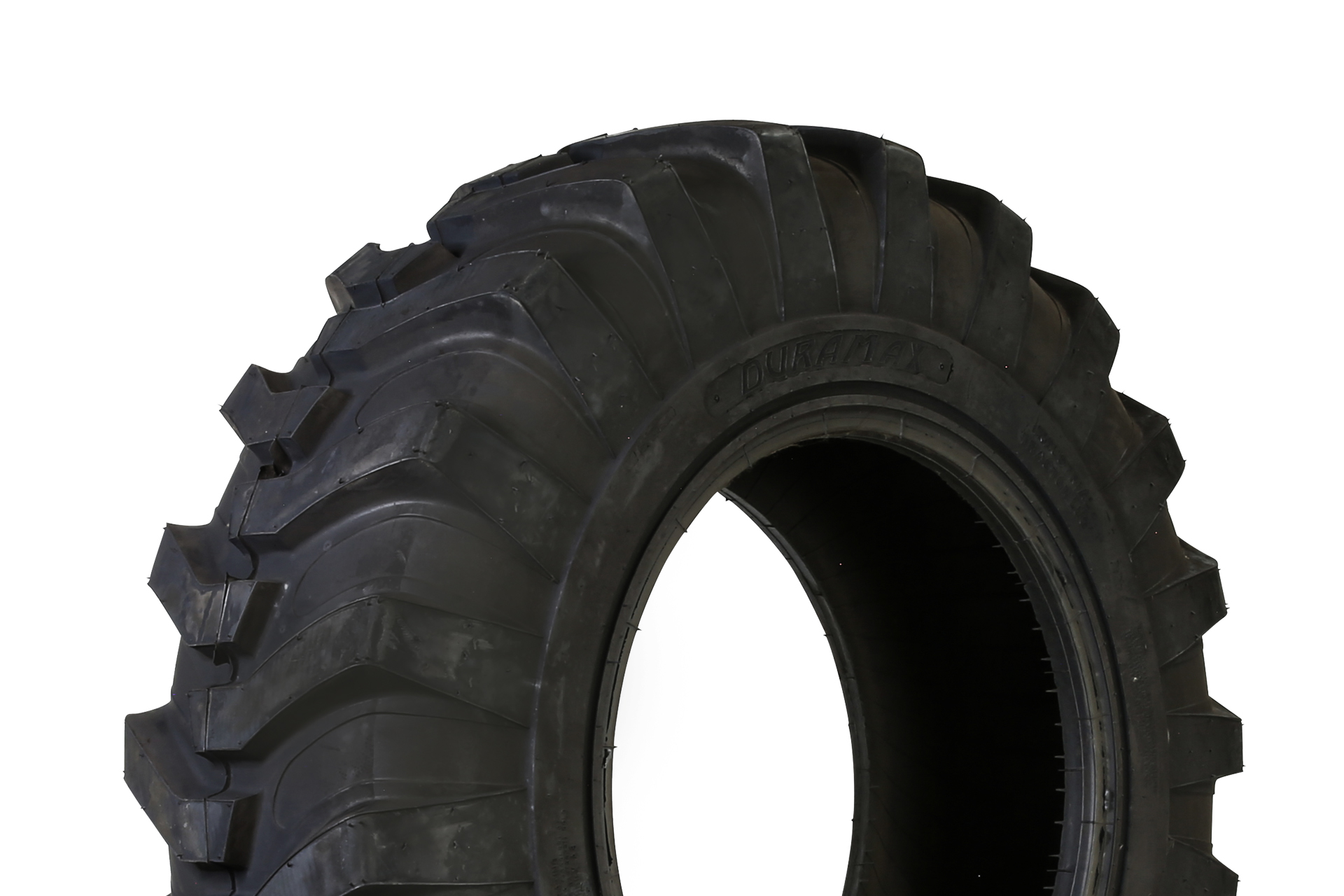

G2 / L2 Pattern – Graders & Sloped Terrain:
Designed for applications needing superior grip on grades and hills, these feature deeper, aggressive tread with enhanced lateral traction.
- Best for: Motor graders, articulated loaders
- Ideal surfaces: Sloped or sandy terrain
- Strengths: Directional control and bite

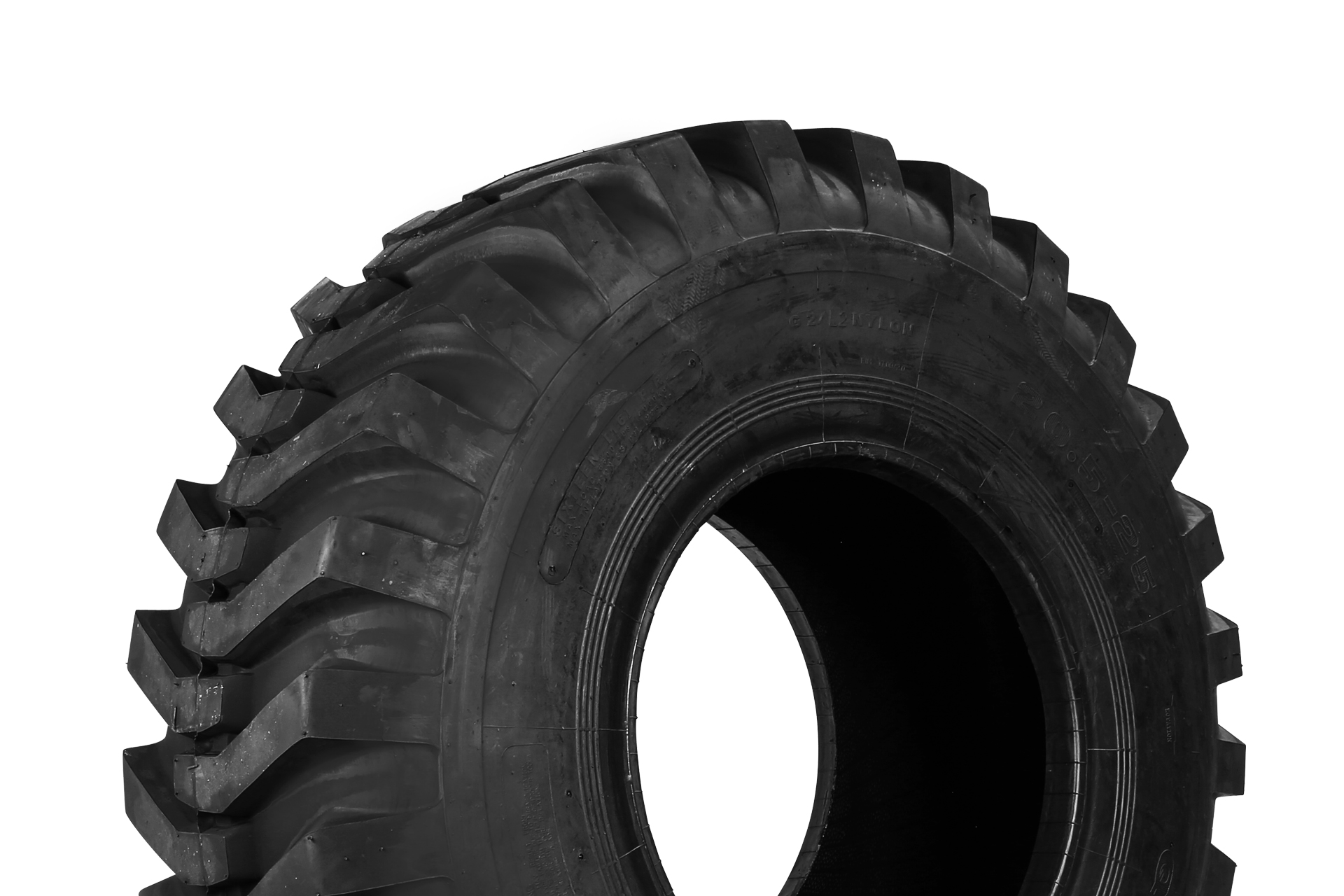

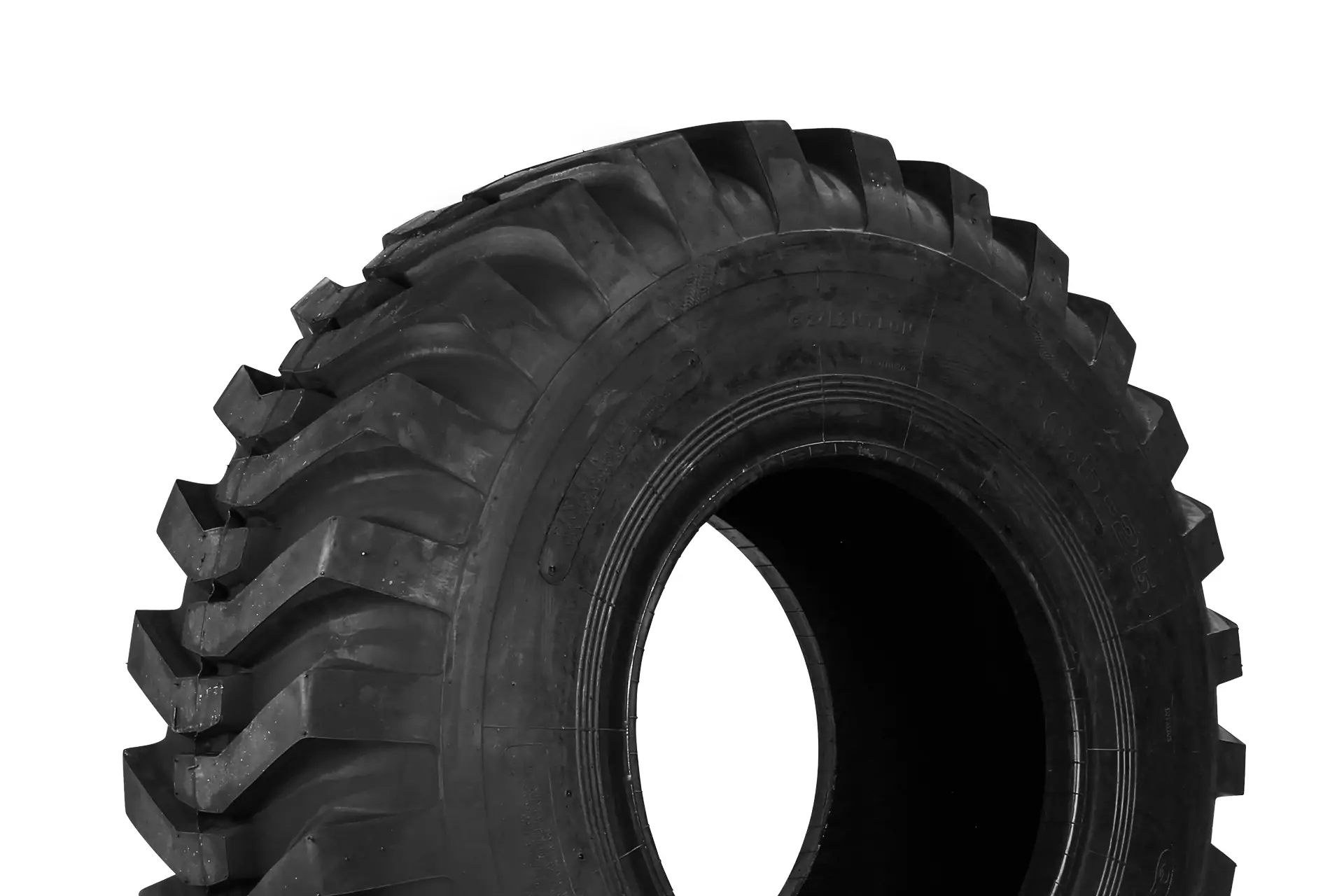

R4 Pattern – Mixed Terrain Utility:
R4s are a hybrid design with denser lugs, ideal for machines moving between dirt, gravel, and paved surfaces.
- Best for: Skid steers, backhoes, telehandlers
- Ideal surfaces: Construction yards, job sites with both off-road and hard surfaces
- Strengths: Balanced wear, good traction across terrain types

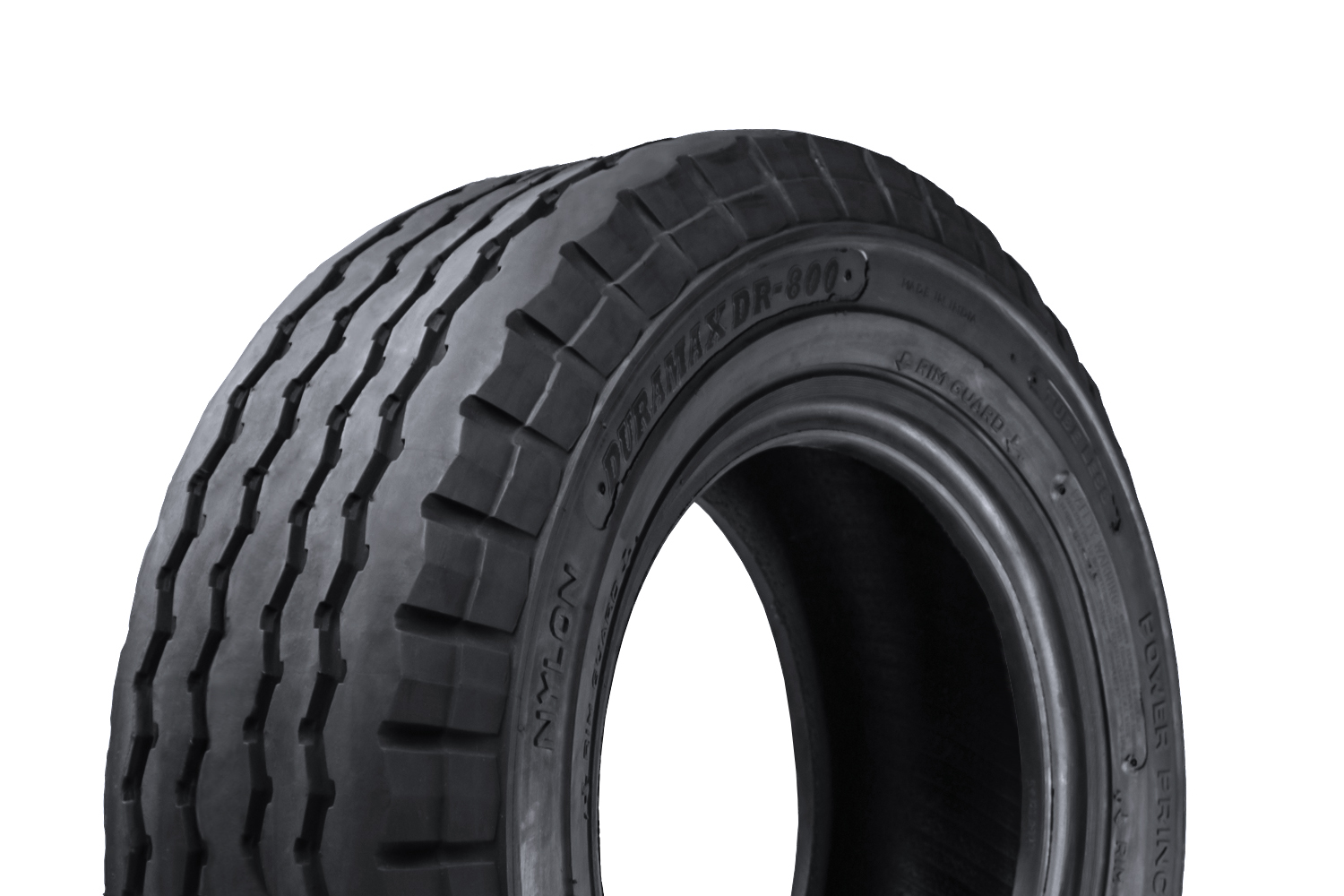

F3 Pattern – Industrial Rib Tread:
Designed with a three-rib tread for directional stability, F3 tires are best used in steering positions and low-impact utility applications.
- Best for: Tow tractors, industrial trucks
- Ideal surfaces: Flat paved yards, light construction zones
- Strengths: Precise steering, low rolling resistance

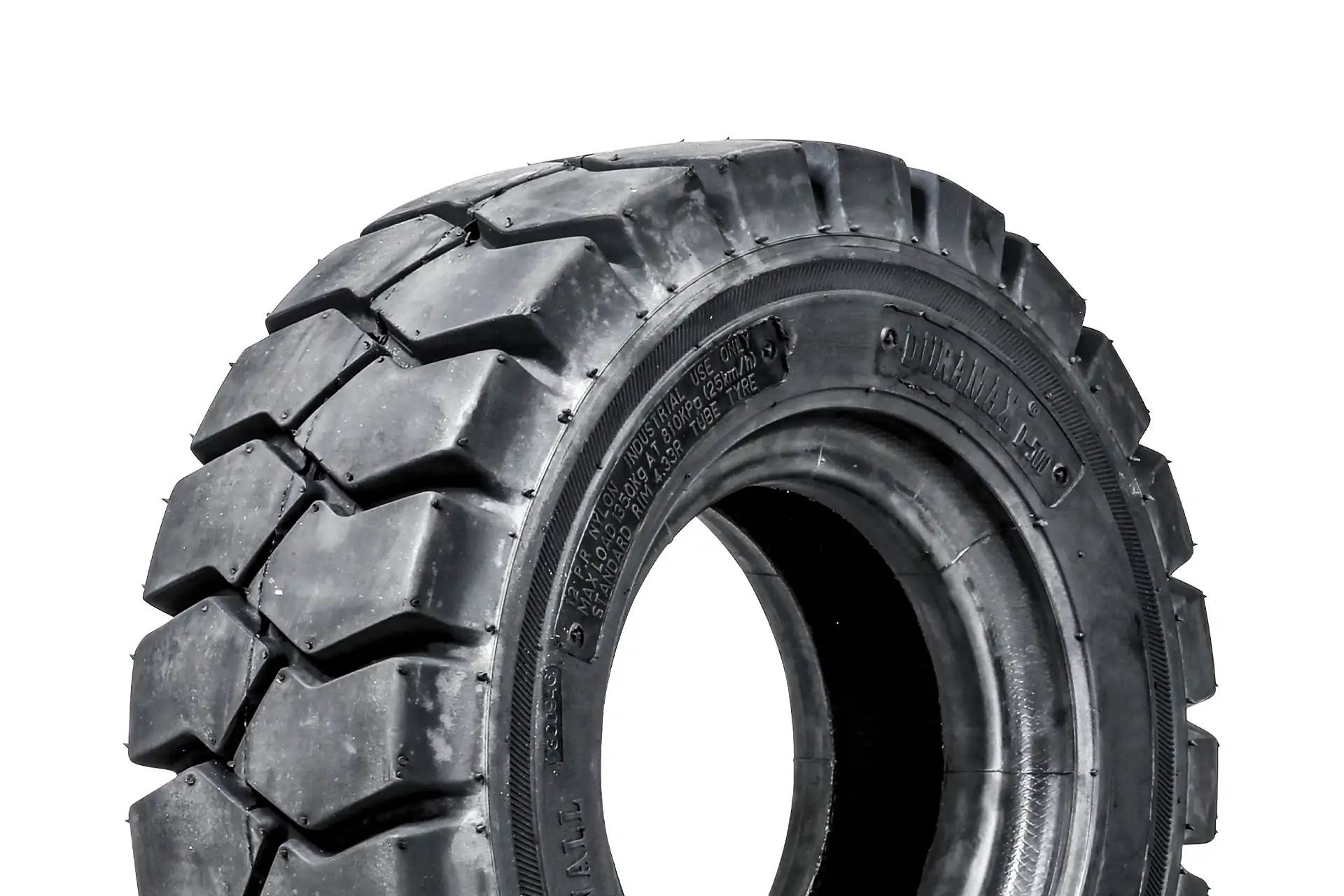

Pneumatic Forklift Tires:
These tires blend cushion and durability, suitable for forklifts operating both indoors and outdoors.
- Best for: Forklifts in mixed warehouse-yard usage
- Ideal surfaces: Concrete, asphalt, semi-rough outdoor terrain
- Strengths: Shock absorption, load stability, long wear

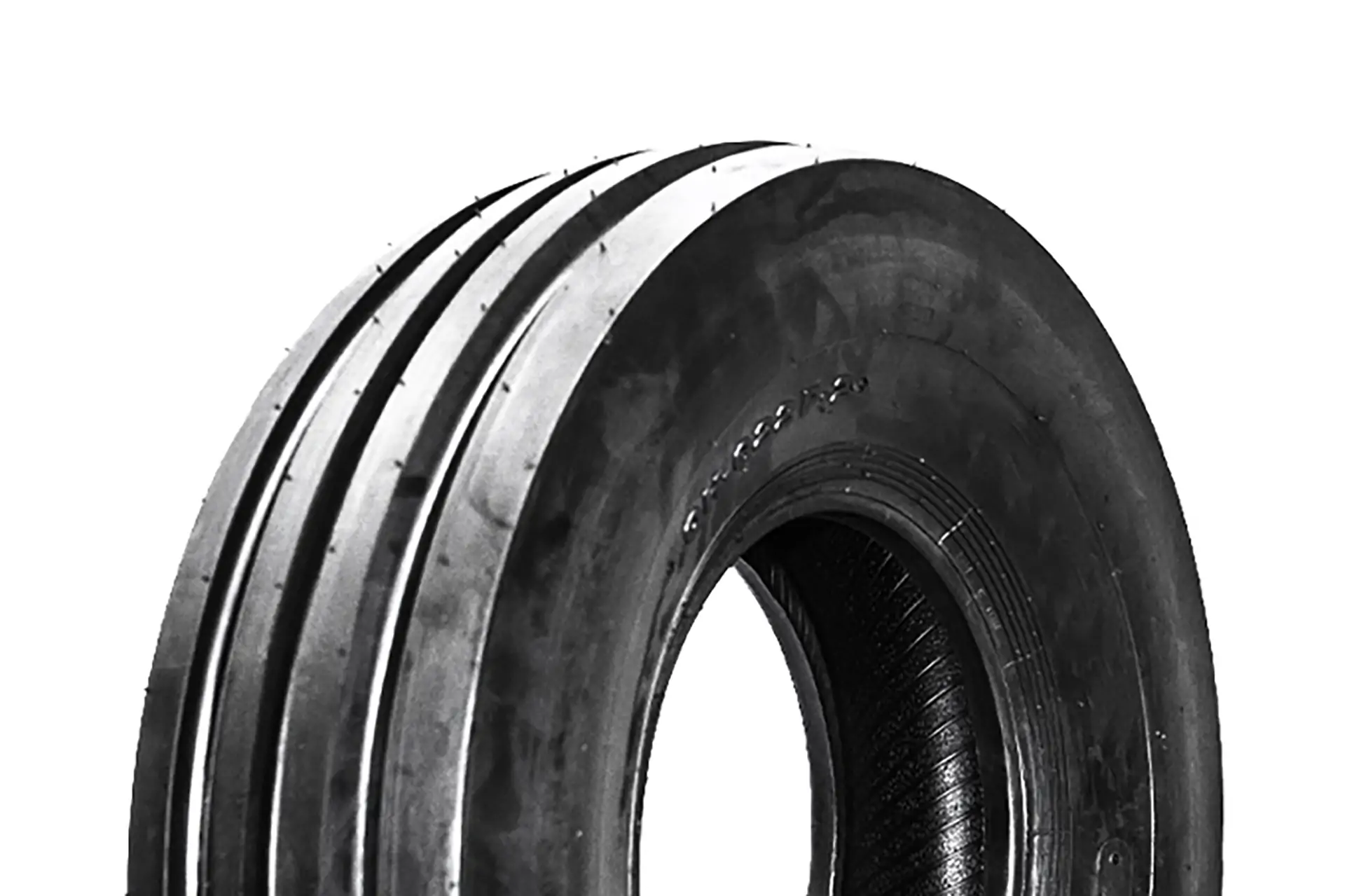

Agricultural Tires:
With deep-lug designs for maximum soil penetration and self-cleaning ability, these are optimized for field traction and soil preservation.
- Best for: Tractors, balers, field sprayers
- Ideal surfaces: Soil, grass, tilled land
- Strengths: High torque traction, flotation

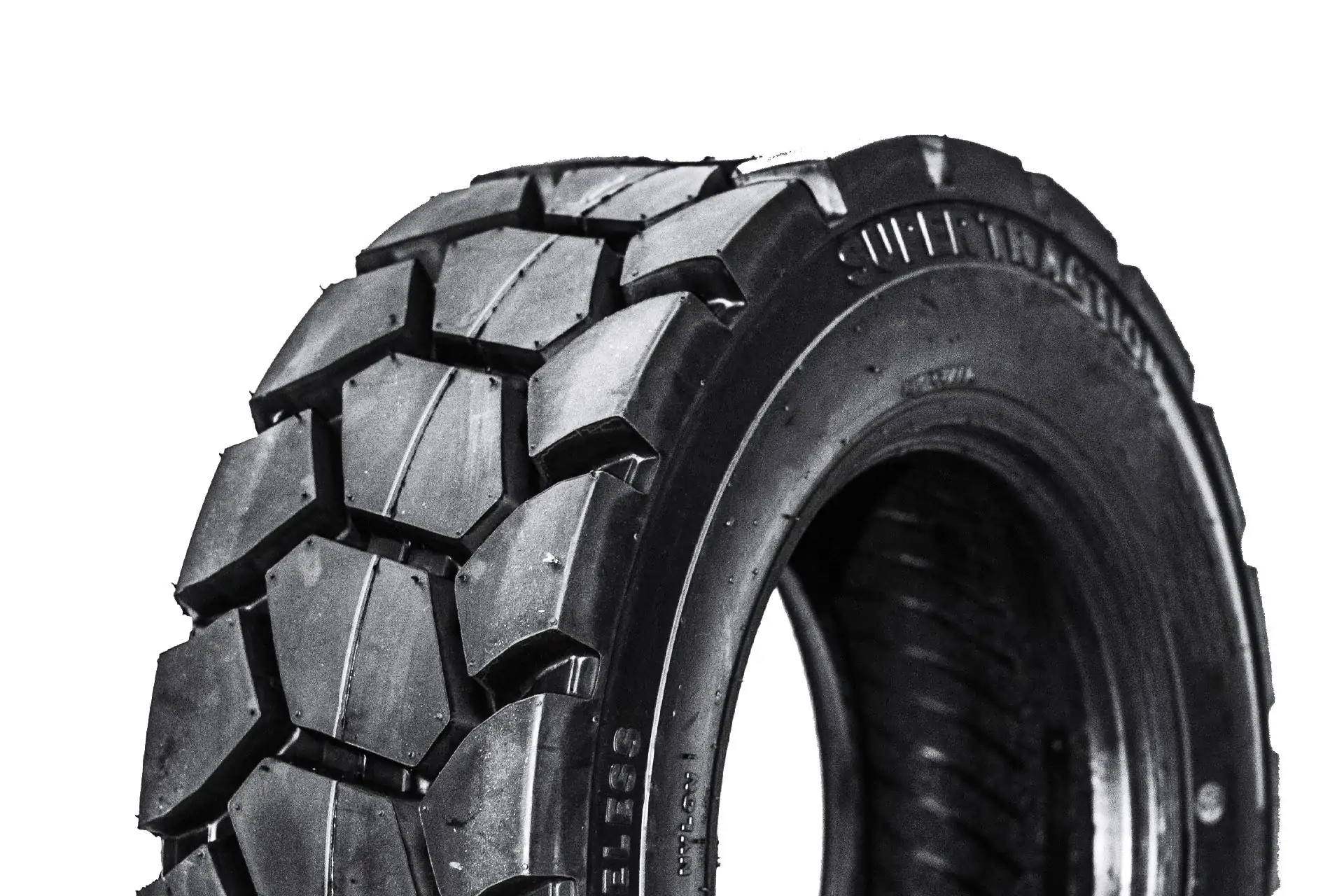

Pneumatic Skid Steer Tires:
Designed for high-torque applications in tight spaces, these tires offer sidewall protection and heavy-duty performance.
- Best for: Demolition, excavation, landscaping
- Ideal surfaces: Rock, loose dirt, concrete, debris zones
- Strengths: Impact resistance, sidewall strength
Tips for Smarter Tread Spec’ing:
- Don’t spec by machine alone — always consider jobsite surface and duty cycle
- Match lug depth and pattern shape to terrain friction
- Account for turning frequency and operator speed
- Choose non-directional tread for mixed jobs or varied operators
- Reassess tire performance seasonally and adjust as needed
The right pneumatic tire is more than a bolt-on component — it’s a ground contact strategy. By aligning tread patterns to actual site conditions, you improve grip, protect equipment, and reduce the frequency of replacement.
Sentry Tire’s full pneumatic lineup is engineered for exactly this kind of decision-making.
Need help identifying the best fit? Our team supports fleet managers, contractors, and dealers with spec assistance every day. Reach out to us.
